Puppet Parts Studio

English | 简体中文

A fully client-side asset processing workbench that splits illustrations, images, or PSD files into usable part layers, and automatically packs multiple transparent assets into a single sheet. All parsing, splitting, merging, and exporting happen locally in your browser — nothing is uploaded to a server.

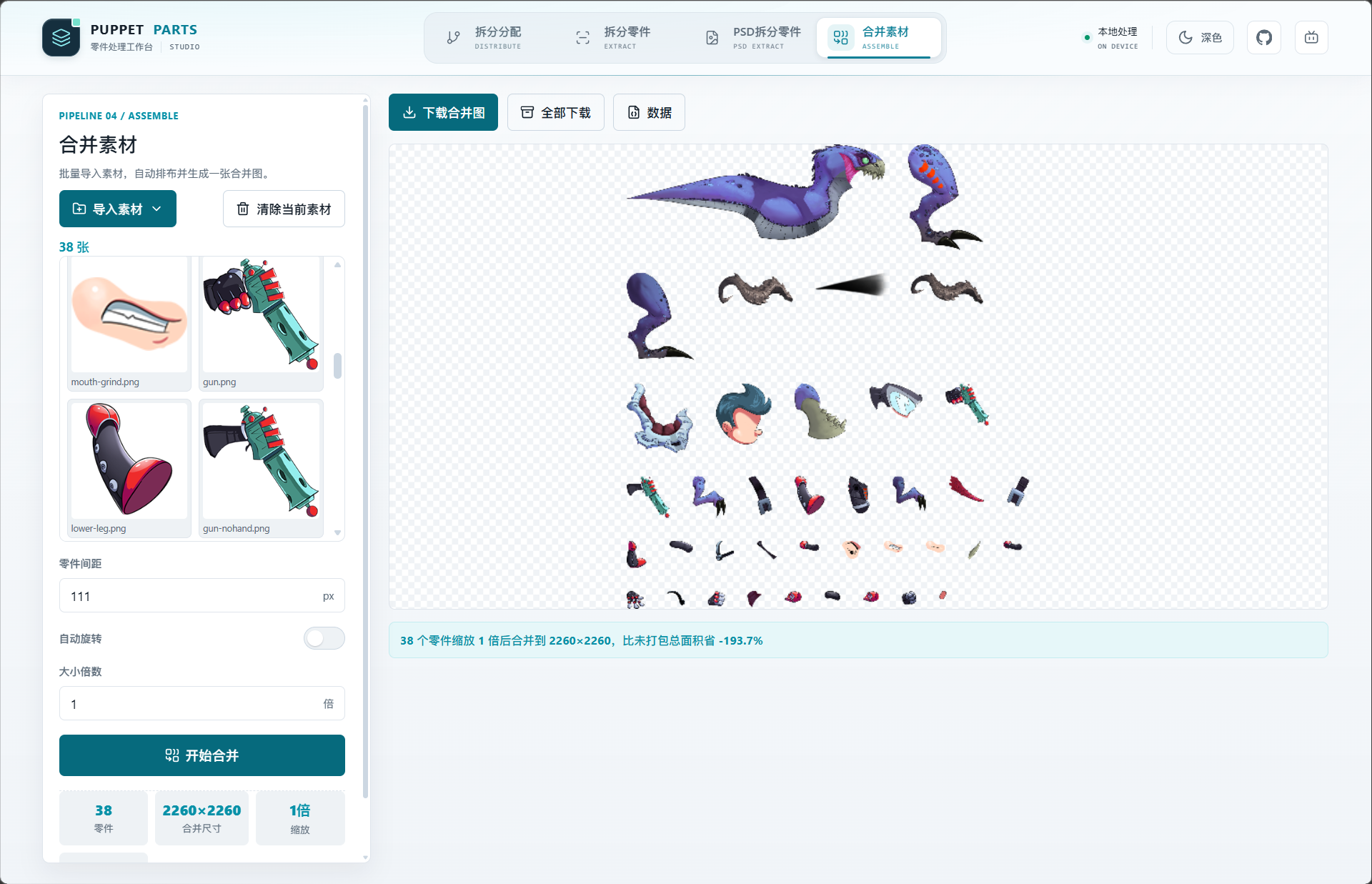

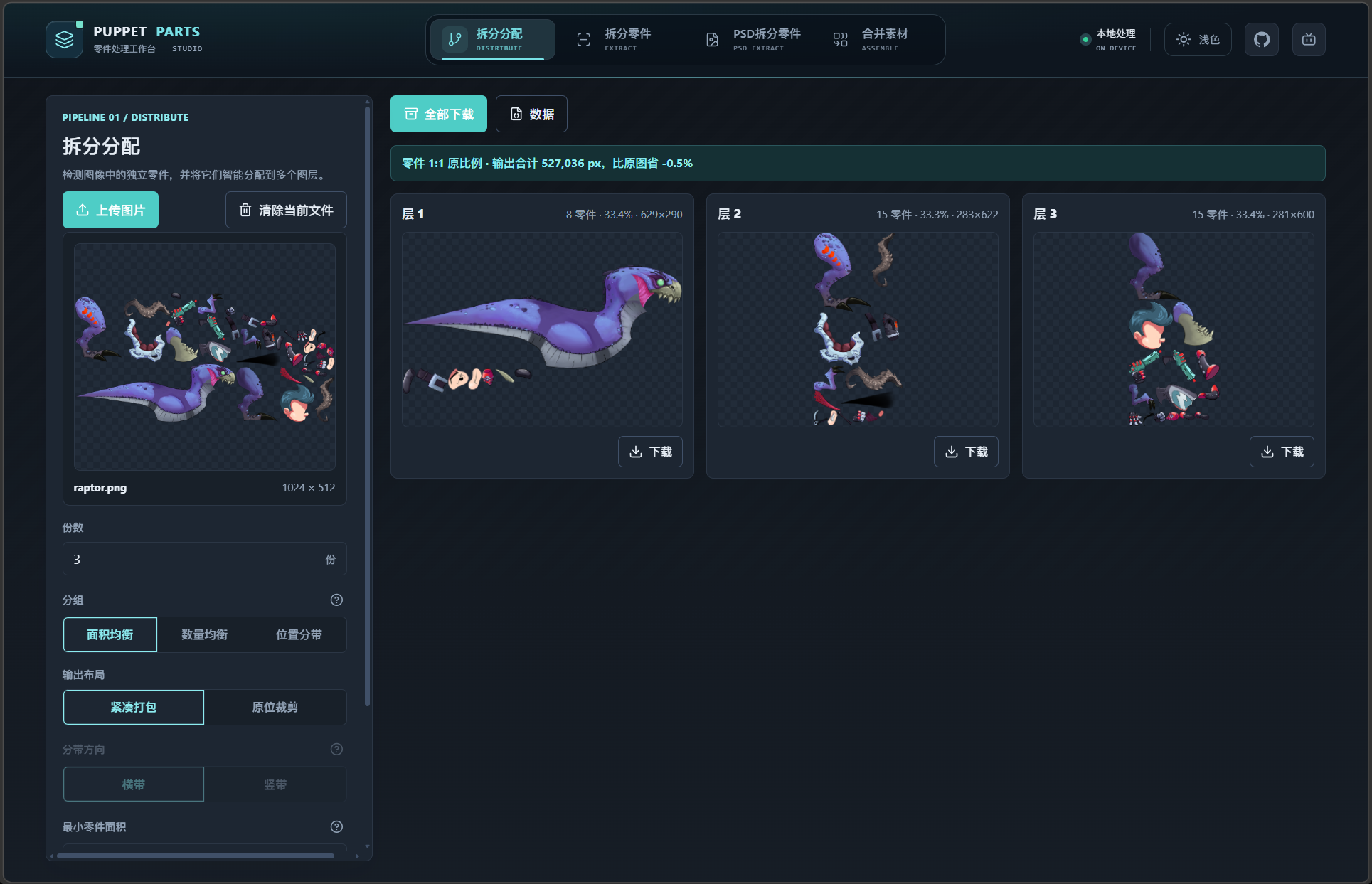

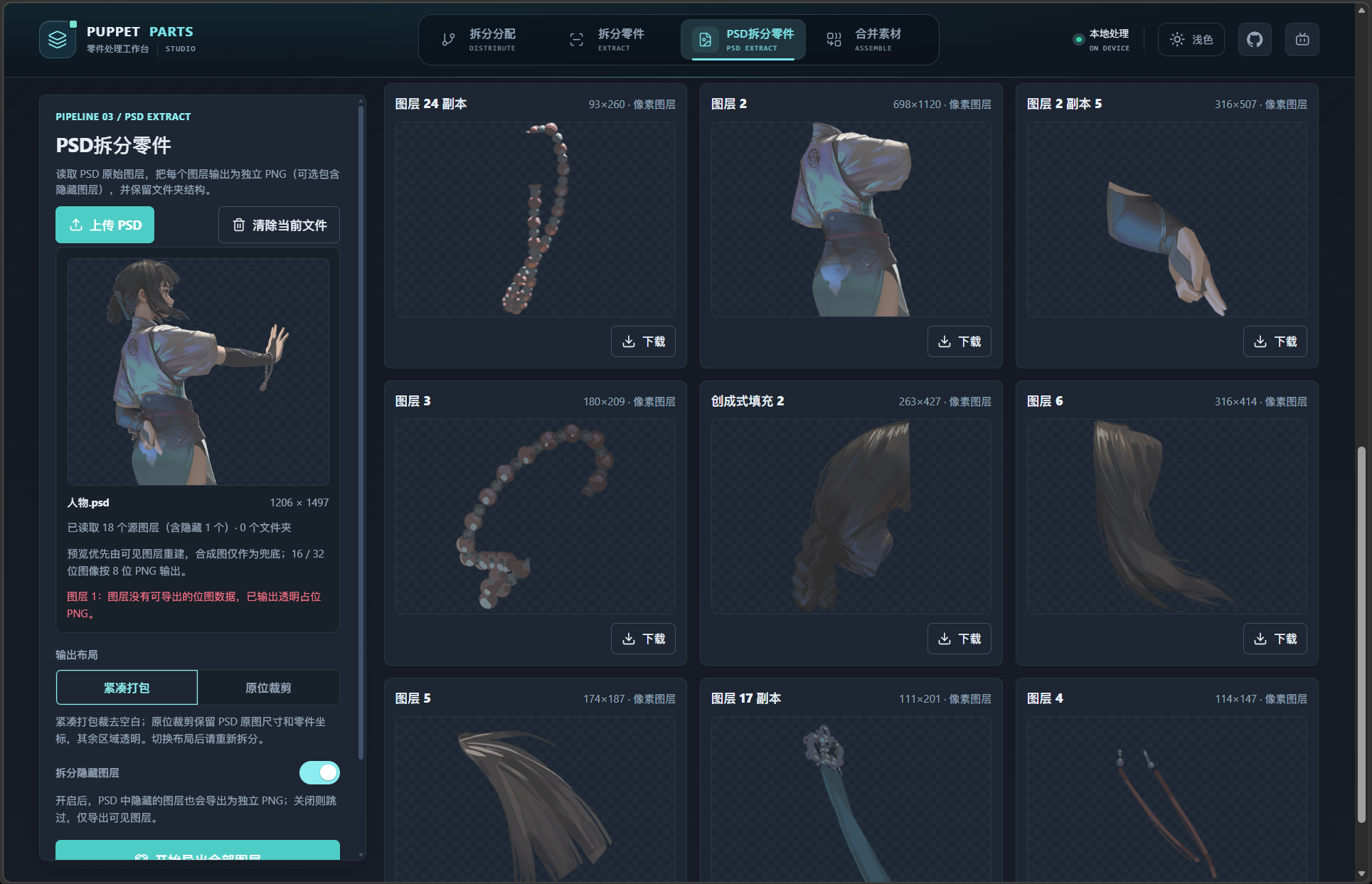

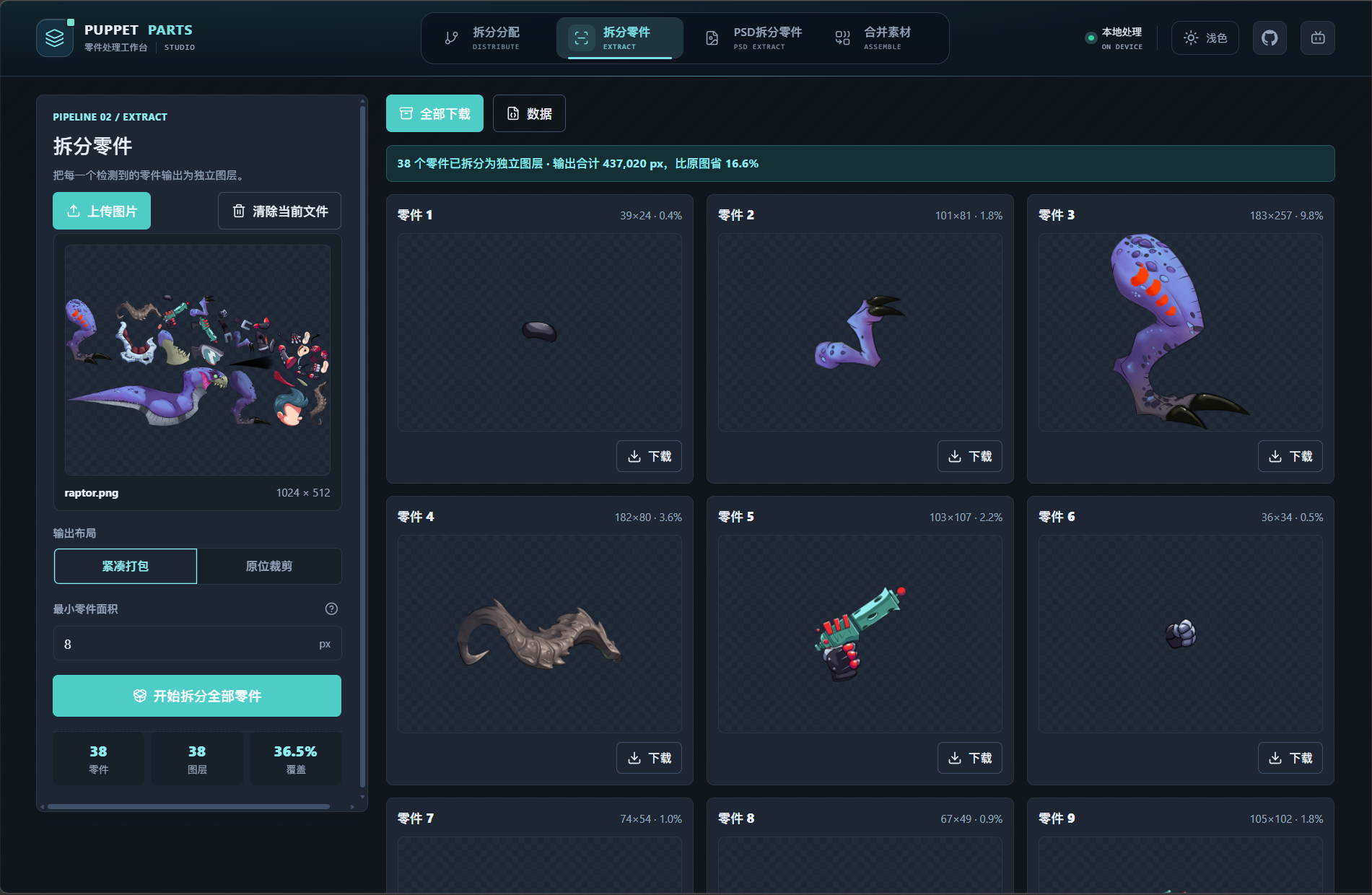

Screenshots

Who Is This For

Wallpaper Engine animated wallpapers — the transparent PNGs it exports are ready for parallax, puppet rigging, breathing, or rotation effects. Live2D / Spine skeletal animation — use it to quickly extract bindable part layers from character illustrations, saving time on manual outlining and one-by-one cropping. Adobe After Effects motion graphics compositing — batch-exported layered PNGs drop straight onto your timeline. Unity / Godot / Unreal game development — the auto-packed sheet and JSON coordinate data work as a Sprite Atlas out of the box. It also serves as a lightweight alternative to Photoshop's "Export Layers to Files" — batch-export PSD layers to PNG without opening Photoshop at all.

Features

Split & Distribute

• Upload or drop PNG / JPG / WEBP images.
• Automatically detects connected parts on transparent backgrounds.
• Outputs multiple layers based on a configurable count.
• Three grouping modes: area balance, count balance, and directional bands.
• Two output layouts: compact packing and in-place cropping.
• Preview individual layers, download all PNGs, and export a JSON manifest.

Extract All Parts

• Detects and exports every connected part as an individual layer.
• Configurable minimum part area to filter noise and small fragments.
• Supports compact packing and in-place cropping layouts.
• Batch download all parts and the data manifest as a ZIP.

PSD Layer Extraction

• Upload or drop .psd / .psb files.
• Reads original PSD layers and exports each as an independent PNG.
• Optionally includes hidden layers.
• Compact packing trims empty space; in-place cropping preserves original canvas size and layer coordinates.
• Rebuilds preview from visible layers first, and preserves the PSD's folder structure.

Merge Assets

• Select multiple image files or import an entire folder.
• Auto-trims transparent edges and packs into a near-square layout.
• Adjustable gap, scale multiplier, and optional auto-rotation.
• Download the merged image, all source assets, and packing data.

Interface & Privacy

• Light and dark theme toggle.
• All assets are processed entirely in your browser — ideal for local or unreleased content.

Requirements

• Node.js 18 or higher (LTS recommended).
• A modern browser such as the latest Chrome, Edge, Firefox, or Safari.
• The "Select Folder" feature works best in browsers that support the File System Access API; unsupported browsers fall back to file selection.

Getting Started

There are two ways to start the project:

Option 1: Double-click (Windows recommended)

Double-click the start.cmd file in the project root. The script automatically:

1. Checks if node_modules exists; runs npm install if not.
2. Checks if port 5173 is already in use; opens the browser directly if so.
3. Opens your browser to the app on first launch.

Close the terminal window when you're done to stop the server.

Option 2: Command line

For manual control, run in the project root:

npm install

Then start the dev server:

npm run dev

Vite will display the local URL, typically:

http://127.0.0.1:5173/

Production Build

npm run build

Output goes to the dist/ directory.

Preview Build Locally

npm run preview

Project Structure

.
├─ src/
│  ├─ index.html        # Page structure and four feature panels
│  ├─ main.js           # Split, PSD parsing, merge, export & interaction logic
│  └─ style.css         # UI styles and theme
├─ dist/                # Build output
└─ package.json
