FPF Agentic Thinking Map

A small, deterministic Python runtime for agents that may reason freely but must move through a workflow lawfully.

It keeps operational state, evidence freshness, transition legality, authorization boundaries, and waiting conditions outside the model's prose context. The model can inspect the map and choose; the runtime decides whether the move is valid.

pip install fpf-thinking-map
python -m fpf_thinking_map.verify

Important links

• ARCHITECTURE.md
• VERSION_TRACKER.md
• TRIPLE_TAX_CALCULUS.md
• REFLECTIONS.md
• CONTRIBUTING.md
• ADVISORIES.md
• dev_mcp/

The dev_mcp development and compliance harness is genuinely tested against the package and updated whenever runtime behavior, compliance checks, or integration requirements change.

The problem

An agent can explain a workflow rule and still lose track of it during a long run. Prose instructions compete with task content, earlier decisions, tool output, and context compression.

FPF Agentic Thinking Map moves the parts that should not depend on narration into ordinary code:

• current context and state;
• evidence presence and TTL freshness;
• gates, guards, and lawful transitions;
• cross-context bridges;
• human authorization;
• external dependencies and wake conditions;
• concrete move identity and trace lineage;
• typed claim scope and pathwise assurance;
• tool-call plan closure and hard autonomy budgets.

This is not another reasoning prompt. It is a compact control surface around reasoning.

Why this works across model sizes

The map clips interpretive slack at both ends. Strong models stop free-associating past what a constraint actually says; lighter models receive enough scaffolding that they do not have to infer the workflow's intent from scratch.

Building a good map still requires real judgment, so new controls should be designed and challenged with strong models first. Consuming the finished map does not require the same reasoning capacity. Once a workflow is encoded as explicit constraints and gates instead of tacit prose, following it correctly stops depending on frontier-level inference. A lighter model does not have to understand the workflow deeply; it has to respect the map.

That is what makes the result portable down to smaller models, not merely across flagship ones: the hard reasoning was front-loaded into the encoding, once, by the map author.

The contract

The division of responsibility is deliberate:

Agent or application	Thinking map runtime
Interprets the task	Holds explicit traversal state
Generates and compares options	Computes which moves are legal
Collects evidence	Checks presence and freshness
Proposes a concrete move	Inspects or attempts that move
Explains the result	Returns a bounded outcome and trace
Requests human input	Enforces the authorization boundary
Executes tools and jobs	Never executes, polls, or schedules them

The map constrains movement, not meaning. It does not replace the model, application logic, retrieval, tools, or a task scheduler.

Structural agentic controls

Concern	Runtime structure	Enforced effect
Claim applicability and assurance	ContextSlice, ClaimScope, FormalityLevel, ReliabilityPath	Numeric G is no longer treated as scope; unknown membership stays unknown; R folds pathwise
Tool-call planning	CallPlanPrimitive, BudgetEnvelope, CheckpointReturn	Incomplete or mismatched declared tool plans return REVISE_PLAN and cannot fire
Autonomous enactment	AutonomyBudgetDecl, AutonomyLedgerEntry	A transition opts in with requires_autonomy_budget_id; failed assignment/gate/envelope returns ESCALATE and successful burn is recorded
Performed-work attribution	WorkPrimitive.performed_under, validate_work_attribution()	Once a map declares RoleAssignments, a dangling or wrong-holder work record cannot satisfy completion
Gate decisions	GateDecision, GateCheck.failure_decision, OutcomeCause	ABSTAIN means the gate lacks enough basis to say yes; an explicit BLOCK means policy says no for the current evaluation. Traversal preserves the distinction as cause=gate_block without breaking the existing outcome enum
Map integrity	ThinkingMapTraversal.validate_map()	Opt-in preflight fails on dangling gate/rule references; explicit unknown transition IDs return typed ABSTAIN

These are bounded runtime compilations, not a port of the full FPF framework.

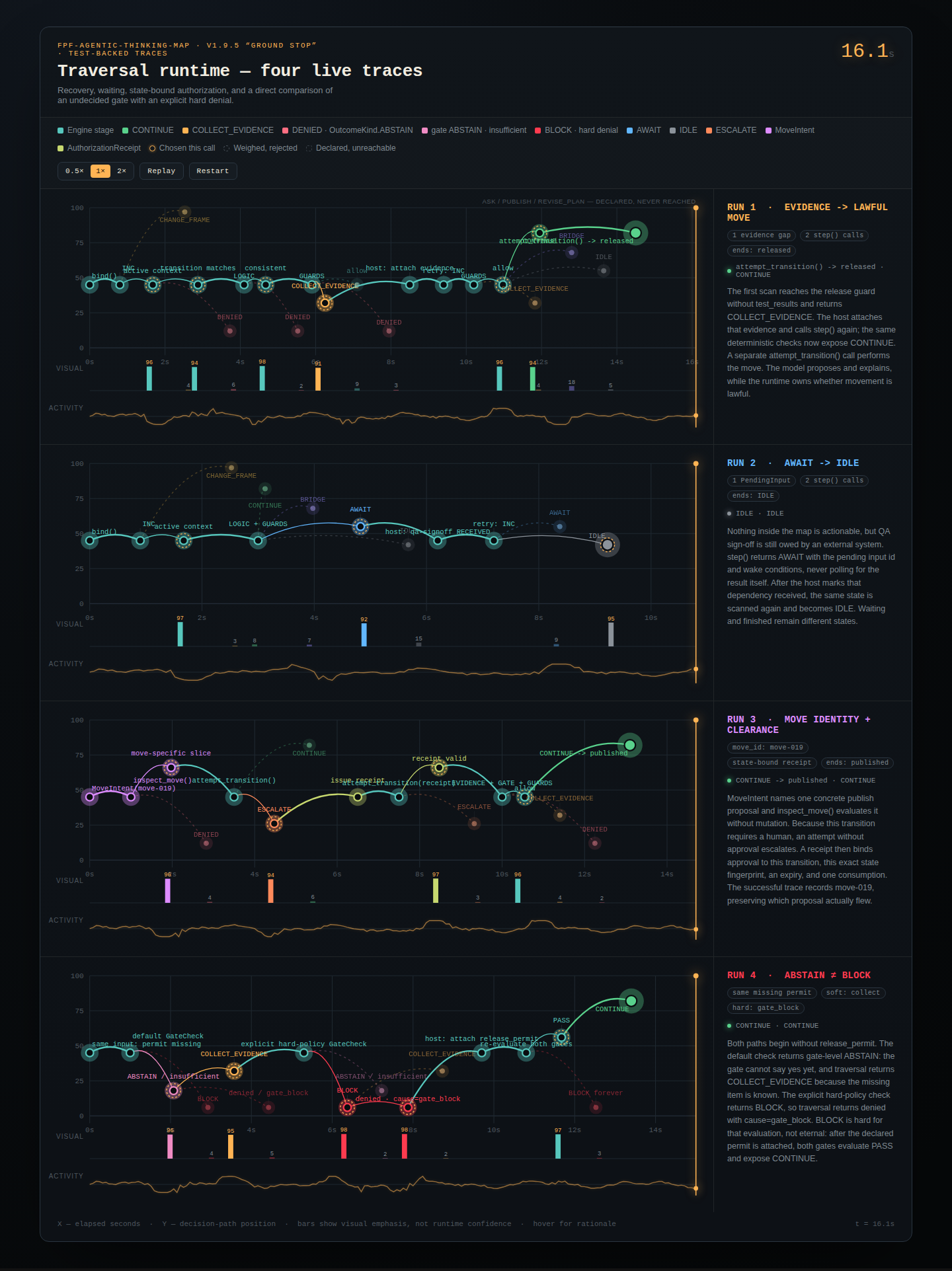

Live runtime visual

Open the interactive four-run trace

The visual follows evidence recovery, PendingInput/AWAIT, MoveIntent, state-bound authorization, and the v1.9.5 distinction between an undecided gate (ABSTAIN) and an explicit hard denial (BLOCK).

Minimal example

from fpf_thinking_map import (
    SemanticMap,
    ContextPrimitive,
    RolePrimitive,
    GatePrimitive,
    GateCheck,
    TransitionPrimitive,
    RuntimeBinding,
    ThinkingMapTraversal,
)

semantic_map = SemanticMap()
semantic_map.register_context(ContextPrimitive("deploy", "Deploy"))
semantic_map.register_role(RolePrimitive("owner", "Owner", "deploy"))
semantic_map.register_gate(
    GatePrimitive(
        "release_gate",
        "Release gate",
        "deploy",
        checks=[
            GateCheck(
                "tests",
                "Tests are green",
                required_evidence=["test_results"],
            )
        ],
    )
)
semantic_map.register_transition(
    TransitionPrimitive(
        "ship",
        "Ship release",
        "deploy",
        "candidate",
        "released",
        required_gate_id="release_gate",
        required_evidence=["test_results"],
    )
)

traversal = ThinkingMapTraversal(semantic_map)
state = traversal.build_active_state(
    RuntimeBinding(
        task="release",
        actor_role_ids=["owner"],
        active_context_id="deploy",
        current_evidence=["test_results"],
    ),
    current_state="candidate",
)

inspection = traversal.step(state)
result = traversal.attempt_transition(state, "ship")

print(inspection.kind)
print(result.kind)
print(state.current_state)

The map is domain-agnostic. Replace the deployment vocabulary with your own contexts, roles, evidence, gates, and transitions.

Run the packaged scenarios:

python -m fpf_thinking_map.examples

What is enforced

Explicit state

The active position is a first-class object, not a conclusion the model must repeatedly reconstruct from chat history.

Evidence with age

Transitions can require evidence. Evidence can decay by semantic floor and TTL, allowing the runtime to distinguish present evidence from usable evidence.

Gates, guards, and logic

Gates test declared conditions. Guards enforce hard constraints. A small propositional layer composes facts without asking the model to reinterpret the rules on every step.

When a gate cannot return PASS, v1.9.5 keeps two different situations apart:

Gate result	Plain-language meaning	Typical traversal response
ABSTAIN ("insufficient")	The gate does not have enough basis to say yes	COLLECT_EVIDENCE when the missing evidence is declared; otherwise a denied outcome
BLOCK	A check explicitly says no under the current declared policy and state	denied with cause=OutcomeCause.GATE_BLOCK

BLOCK is hard for that evaluation, not necessarily permanent. It must not be downgraded by another check or treated as an invitation to guess, but the gate may evaluate differently after its declared evidence, state, or policy changes. Existing checks do not become hard blocks automatically; a check opts in with failure_decision=GateDecision.BLOCK.

Validated bridges

Cross-context movement is explicit. High-risk substitution without a sufficient bridge contract is refused or escalated rather than silently treated as equivalent.

Human authorization

requires_human_authorization separates "structurally legal" from "authorized to execute."

For stronger integrations, AuthorizationReceipt binds approval to:

• one transition;
• the exact inspected state fingerprint;
• an expiry boundary;
• single consumption.

A denied move may expose declared safe_alternatives, so escalation does not have to become a dead end.

External waiting

PendingInput and AWAIT distinguish "the workflow is finished" from "the workflow is alive but waiting for something outside the map." The host owns polling and resolution.

Concrete move identity

MoveIntent distinguishes a reusable transition type from one particular proposed move. inspect_move() evaluates it without mutation; a successful transition can stamp move lineage into the trace.

Why the versions matter

The project has grown by closing specific ambiguities in traversal state, not by expanding into a general agent framework.

Release line	Capability added
v1.0	Runnable semantic primitives, deterministic guards, lawful traversal
v1.2	Evidence TTL, response contracts, IDLE and BRIDGE
v1.3	Enforced bridge crossing and lean state slices
v1.4	Stagnation detection, integrator advisories, verified documentation
v1.5	Stable public package boundary
v1.6	Human authorization and safe denial routes
v1.7	State-bound, expiring authorization receipts
v1.8	External dependency tracking and AWAIT
v1.9	Concrete move identity, inspection, lineage, authorization-clock fix
v1.9.5 "Ground Stop"	Correct A.21 gate join; explicit BLOCK versus insufficient ABSTAIN; typed denial causes; opt-in structural controls

The complete reader-facing history is in docs/VERSION_TRACKER.md. Technical changes are in CHANGELOG.md, and full release bodies remain in GitHub Releases.

This separation is intentional: the README describes the stable product; the tracker records how that product became stronger.

Evidence, verification, and limits

The repository includes three different kinds of support. They should not be confused:

• Deterministic verification checks runtime invariants directly.
• Scenario and adversarial tests exercise integration behavior and known failure shapes.
• Model experiments show behavior under stated conditions; they are evidence, not universal guarantees.

python -m fpf_thinking_map.verify
python -m fpf_thinking_map.examples

The 1.9.5 gate distinction was also replayed through dev_mcp with the same missing release_permit under two policies:

default check       -> gate: insufficient -> outcome: collect_evidence
explicit BLOCK      -> gate: block        -> outcome: denied (cause: gate_block)
permit present      -> gate: pass         -> outcome: continue

That is the release contract in one view: uncertainty requests a resolution path; a declared hard denial stops the move and remains identifiable to the caller.

The compiled state slice was also measured against injecting the corresponding raw FPF sections at five shipped decision points. The measured slice was much smaller, but this is a traversal-context result, not a claim about general intelligence or total application cost. Method and limitations: TRIPLE_TAX_CALCULUS.md.

For the authorization experiments, threat boundaries, failures found, and claims deliberately not made, see IGNITION_LOCK_WIND_TUNNEL.md.

Scope

Use this library when you need:

• bounded multi-step traversal;
• explicit next-move legality;
• evidence-aware workflow state;
• inspectable reasons for blocking or escalation;
• human authorization for selected transitions;
• a clean distinction between waiting, resting, and acting;
• compact state projections for an LLM or agent host.

Do not use it as:

• a universal reasoning engine;
• a semantic ingestion system for all of FPF;
• an embeddings or vector database;
• a tool runner, queue, scheduler, or worker supervisor;
• a substitute for application-specific policy;
• a certification that an entire agent system is safe.

Correct map authoring and correct host integration remain part of the trust boundary. Known sharp edges and deliberate non-goals are recorded in ADVISORIES.md.

Repository guide

Path	Purpose
fpf_thinking_map/	Zero-dependency runtime published to PyPI
dev_mcp/	Separate development and compliance-testing harness
ARCHITECTURE.md	Verified control flow and module architecture
docs/VERSION_TRACKER.md	Every release, with three practical consequences
docs/DECISIONS_REJECTIONS_ADOPTIONS.md	Design provenance and rejected scope
docs/deep/ADVISORIES.md	Integration boundaries and known sharp edges
SHA256SUMS	Repository-wide source fingerprints

Design rules

1. Keep the model free to generate and compare.
2. Keep movement legality explicit and deterministic.
3. Add structure only when it changes observable behavior.
4. Keep each decision payload small.
5. Keep host responsibilities outside the core.
6. Record rejected ideas as carefully as adopted ones.
7. Prefer a narrow mechanism with inspectable limits over a broad claim.

Relationship to FPF

This project is inspired by ailev/FPF by Anatoly Levenchuk. It is an independent, MIT-licensed implementation with its own runtime scope.

FPF provides the broad conceptual frame. This package compiles a selected part of that frame into a practical traversal runtime. It may omit or reject patterns that do not improve this package's observable agent behavior.

See NOTICE and SOURCES.md for attribution and scope boundaries.

License and contact

MIT License. See LICENSE.

Maintained by igareosh.com · @igareosh · igareosh@igareosh.com

Agent freedom. Explicit movement rules.
