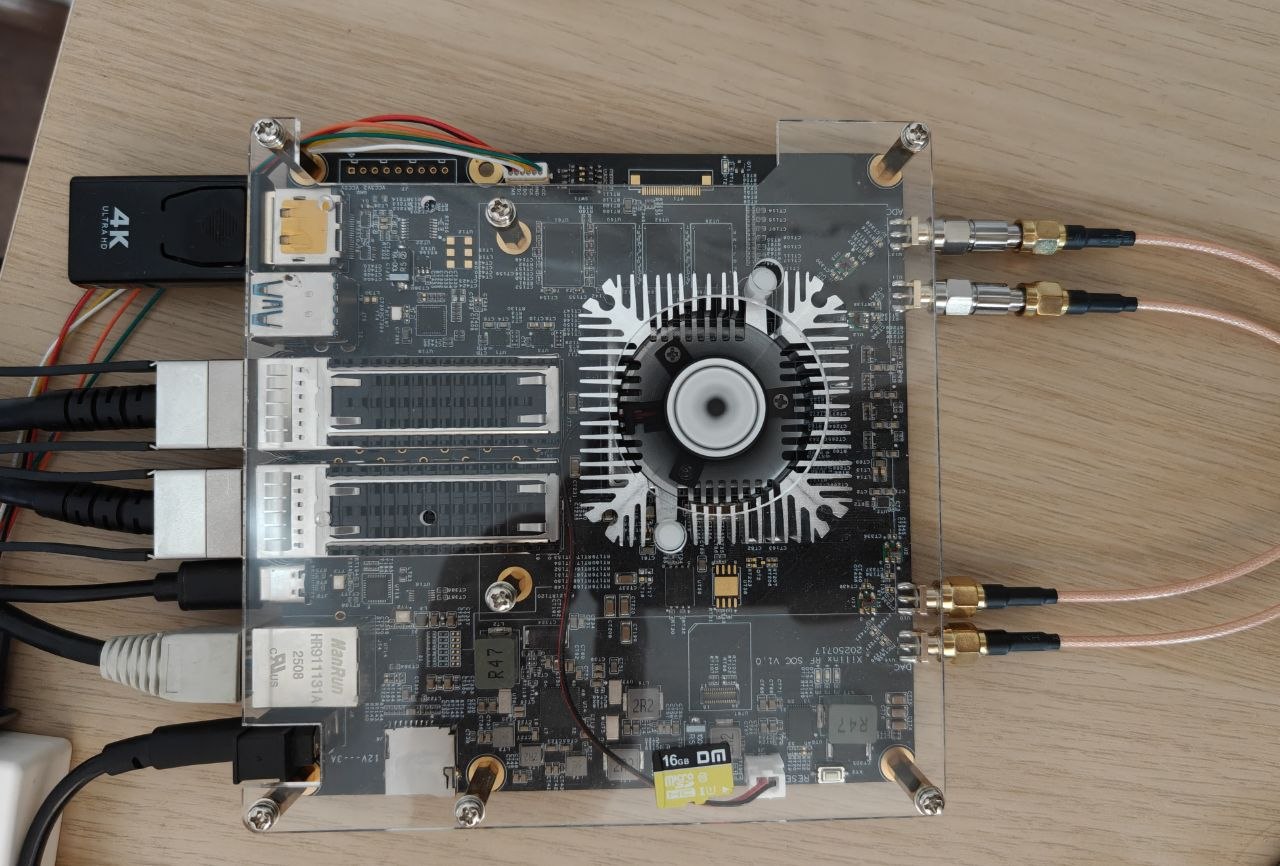

Board support package for a Xilinx XCZU27DR RFSoC
The board ships with a schematic and not much else — no manual, no pin list, no worked examples. This repository is the manual. Every interface was brought up one at a time, and each one has a script you can actually run plus a page explaining the pins, the registers, and the things that cost you an afternoon if nobody warns you first.
Seven interfaces, every result measured on real hardware:
| DDR4 | 4 GB, 12 of 12 PHY training stages, patterns hold with no aliasing |
| GTY transceivers | 8 lanes at 10.3125 Gbps through QSFP28, PRBS-31, zero bit errors |
| RF converters | tones at 125 and 375 MHz played out and captured back at 4.0 GSPS |
| Gigabit Ethernet | GEM3 + RTL8211FD at 1000 Mb full duplex, frames verified by the host NIC |
| Clocking | all four GTY reference inputs counted in-fabric against a known reference |
| JTAG and I/O | chain and DAP memory access, LEDs, and the bank-voltage question settled from the schematic |
Verilog · Tcl · Vivado · Vitis
