Faultree

A Python tool for Fault Tree Analysis (FTA) using Ordered Binary Decision Diagrams (OBDD).

Overview

• Converts a Fault Tree (FTA) JSON into an Ordered BDD using the dd package.
• Supports logic gates: AND, OR, XOR (exactly-one), K-of-N.
• Exact top-event and intermediate-event probabilities in O(|BDD|) time (memoized Shannon cofactor recursion) — repeated/shared events are handled exactly, with no cut-set approximations.
• Outputs algebraic and symbolic expressions.
• Supports internal event cloning via ref (reference nodes), making the model a DAG.
• Probabilities can be scalars or sample arrays (evaluated elementwise), given inline, as a JSON mapping, or loaded from CSV/Excel files.

Graphical interface

faultree gui (or python -m faultree gui) opens a local web app in the browser: load or build a tree, give the basic events probabilities or distributions, and explore the exact results without writing code.

faultree gui                            # http://127.0.0.1:8765/, or a free port
faultree gui --port 9000 --no-browser   # choose the port; open the page yourself

It runs entirely on your computer: a small standard-library server, bound to 127.0.0.1, serves the page and calls analyze() and minimal_cut_sets(). Nothing is loaded from the internet (it works offline) and it needs no extra dependency. Ctrl+C stops it. The interface is in Portuguese and English: it follows the browser's language, and the PT/EN switch changes it.

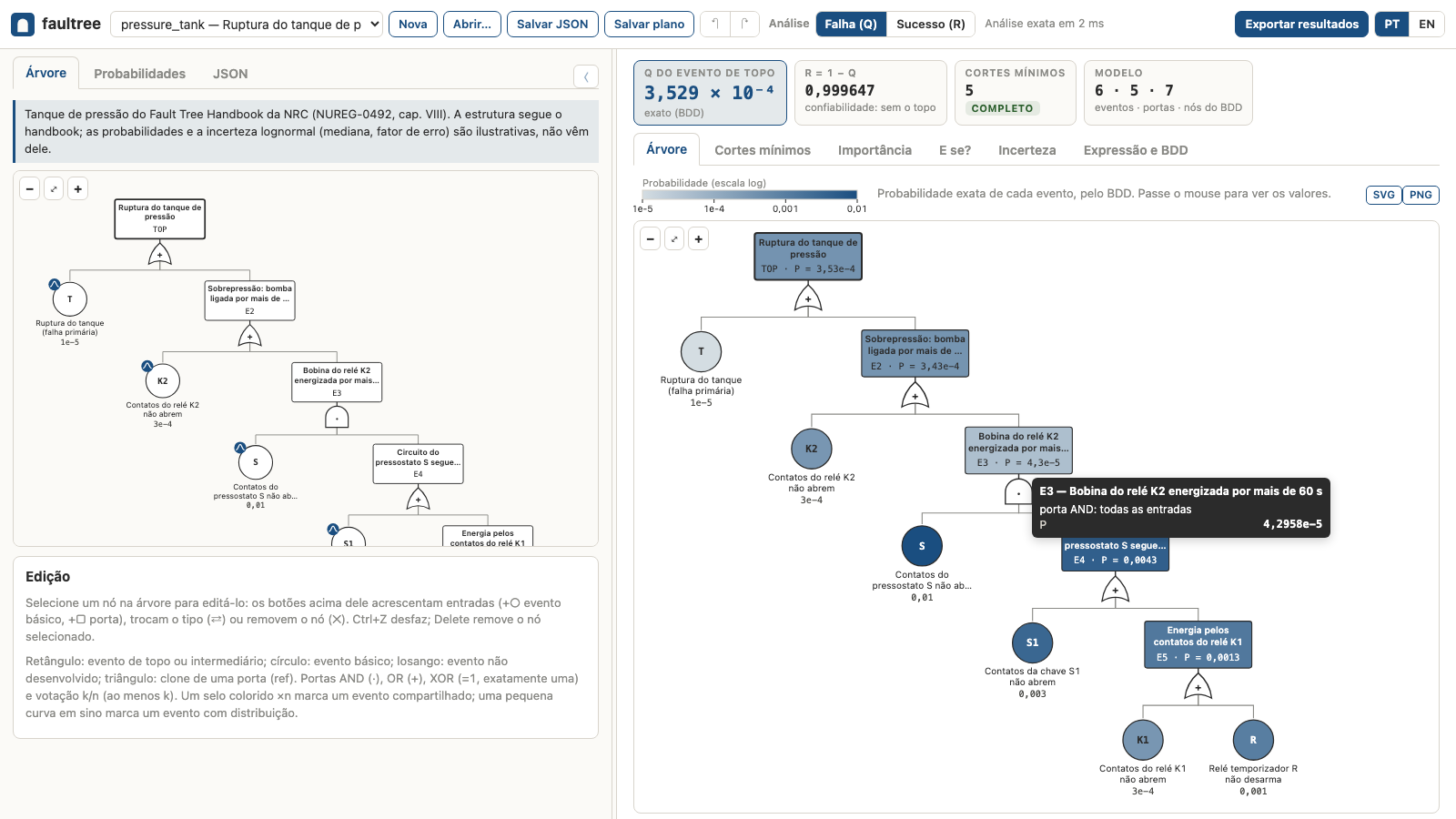

The model is on the left:

• Tree: the editor. Select a node to add basic events or gates, change the gate (AND, OR, XOR = exactly one, k-out-of-n), share a basic event between branches, or add a clone of a gate (faultree's ref); undo and redo with Ctrl+Z / Ctrl+Shift+Z. Every occurrence of a shared event, and a gate together with its clones, carries the same marker in a colour of its own (a letter A, B, C…, the colour alone, or the count ×n), and hovering or selecting one highlights all the others.
• Probabilities: the probability of every basic event, given directly or by a failure model at a mission time t: p = F(t) for a time to failure that is exponential, Weibull, normal, lognormal, gamma or uniform, or a count of failures reaching k (binomial over n demands, Poisson over [0, t]). In success mode the event value is the reliability 1 − F(t). Optionally, a distribution of p for the uncertainty analysis (lognormal by median and error factor, beta, uniform, log-uniform); a CSV/Excel probability file can be imported (one column per event; one row gives point values, several rows give joint sample vectors).
• JSON: the model in faultree's format, to edit or paste (recursive or flat) and apply.
• The top bar opens the examples in examples/ and JSON files, saves the model in the recursive or the flat format, and switches between failure analysis (Q) and success analysis (R, with reliabilities as inputs). The ⚙ button opens the settings: the shared-event marker, highlighting of occurrences and automatic or scientific notation (kept in the browser).

The results are on the right, recomputed as you edit:

• A summary: exact Q (or R) and its complement, the number of minimal cut sets with the completeness flag, the model and BDD sizes, and the uncertainty band once it has been run.
• Tree: the exact probability of every event drawn on the tree (one-hue, logarithmic colour scale), with the values on hover.
• Minimal cut sets: a sortable table (order, probability, share of Q), the largest contributions, the completeness flag and maximum order, and the rare-event sum and min-cut upper bound next to the exact Q. Hovering a row marks its events on the model tree.
• Importance: Birnbaum, criticality, RAW and RRW of every basic event as sortable bars, and a RAW × RRW (or Birnbaum × criticality) scatter with the usual screening thresholds.
• What if?: click basic events to set them failed or working; Q and every gate are recomputed exactly, with the ratio to the base Q.
• Uncertainty: draws joint samples of the events that have a distribution, propagates them exactly as sample vectors, and shows the histogram or CDF of Q with its 5/50/95 % percentiles, mean and point value, and the spread of each importance measure per event. Runs are reproducible: each event draws from numpy.random.default_rng([seed, zlib.crc32(event_id)]).
• Expression and BDD: faultree's expression and symbolic forms and, for small trees, the BDD with the probability of each node (the Shannon recursion behind the exact result).
• Export results saves a JSON with the model, settings, point results, what-if scenario and uncertainty run; every chart has SVG and PNG buttons.

The GUI keeps an event's distribution in an uncertainty field ({"dist": "lognormal", "median": 1e-3, "ef": 3}), its failure model in failure_model ({"dist": "weibull", "beta": 1.8, "eta": 12000}) with mission_time and time_unit on the top event, and an optional Portuguese name in name_pt; the engine ignores them and reads prob, which the GUI saves as F(t) at the mission time. examples/pressure_tank.json is the pressure tank of the NRC Fault Tree Handbook (NUREG-0492), with illustrative probabilities; examples/cooling_system.json uses every kind of failure model. More screenshots are in docs/gui.

Installation

Requires Python ≥ 3.10.

pip install faultree            # library + CLI (needs only dd and numpy)
pip install "faultree[server]"  # + FastAPI/uvicorn for the API server
pip install "faultree[excel]"   # + pandas/openpyxl to read Excel probability files

CSV probability files need no extra dependency. faultree uses dd.autoref, the pure-Python BDD backend of dd, so no C compiler or CUDD is needed at run time, which also lets it run in the browser under Pyodide. PyPI has only Linux wheels and the source of dd; for Pyodide, build a pure-Python wheel first with pip wheel dd --no-deps --no-binary dd.

From a checkout of this repository:

pip install -e ".[server,test]"

Tree Format

• Fields:
  • id (string): Unique identifier for the event.
  • name (string): Descriptive name.
  • event_type: top, intermediate, basic, or undeveloped.
  • gate: AND, OR, XOR, K_OF_N, or null/BASIC for leaves.
  • children (list): Child nodes.
  • k (int): Required for K_OF_N gates (0 <= k <= n).
  • prob (finite float or non-empty list of finite floats): Probability for basic/undeveloped events. A list is treated as a one-dimensional sample vector and propagated elementwise.
  • ref (string): ID of another node to clone/reference.
  • prob_file (string, optional, top level): CSV/Excel file with one column per basic-event id, resolved relative to the tree JSON.

Gate semantics: XOR means exactly one input (a mutually-exclusive gate), not chained parity. K_OF_N means at least k of the n inputs.

Every basic event must have a probability (from the tree, --probs, or a probability file); a missing probability is an error unless --assume-missing-zero is passed.

Supported Formats

Faultree supports two JSON formats (auto-detected):

1. Recursive Tree (standard): Nodes nested within children.
2. Flat List: Nodes defined in ft_nodes and be_nodes lists, with branches referencing child IDs.

Event IDs must identify one definition. Repeating an identical definition is accepted as an inline copy of the same event; conflicting repeated definitions are rejected. A flat model must provide an explicit analysis/esd_nodes root or have exactly one unreferenced root, and every declared node must be reachable from it.

Usage

faultree examples/basic_tree.json
# or equivalently
python -m faultree examples/basic_tree.json

Override probabilities (inline JSON or a CSV/Excel path):

faultree examples/basic_tree.json --probs '{"BE1": 0.05}'
faultree examples/fta4b.json --probs examples/fta4b_probs.csv

A probability CSV has a header row of basic-event ids and one row per sample. Columns may be separated by ,, ; or a tab; with ; or a tab, decimal commas (0,05) are read as well, which is what Excel writes in pt-BR and other comma-decimal locales. The .csv/.xlsx extension is not case-sensitive.

Reliability analysis (dual/success tree). The tree keeps its failure-logic structure, but inputs are interpreted as reliabilities and the result is the system success probability R = 1 - Q:

faultree examples/fta3_success.json --reliability

Structured JSON (top-event probability, conditional probabilities, importance measures and the assumptions used) and minimal cut sets:

faultree examples/fta4.json --structured
faultree examples/fta4.json --cut-sets        # optional max order, default 6

JSON output is strict: non-finite values (for example an infinite risk reduction worth when one event alone guards the top event) are written as null.

Run the API server (binds to 127.0.0.1 by default; pass --host 0.0.0.0 to expose it):

faultree --serve

Example request:

curl -X POST http://localhost:8000/analyze \
  -H "Content-Type: application/json" \
  -d '{
    "tree": {
      "id": "TOP",
      "gate": "OR",
      "children": [
        {"id": "A", "prob": 0.1},
        {"id": "B", "prob": 0.2}
      ]
    }
  }'

Features

• Logic Gates: AND, OR, XOR (exactly one), K-of-N (at least k).
• Exact quantification: weighted model counting via the BDD cofactor recursion — linear in BDD size, exact for repeated/shared events.
• Importance measures (analyze(), --structured; fault-tree mode): Birnbaum, criticality (Q − Q0)/Q, risk achievement worth (RAW) and risk reduction worth (RRW), computed exactly on the BDD for every basic event, also elementwise for sample vectors. Criticality equals the risk-decrease form that PRA codes often call Fussell-Vesely (1 − 1/RRW); Fussell's cut-set definition is larger and agrees with it only for rare events.
• Minimal cut sets (minimal_cut_sets(), --cut-sets): bounded enumeration for monotone AND/OR/K-of-N trees, with an explicit completeness flag.
• Dual tree mode: reliability/success probability from the same tree.
• Sampled probabilities: equal-length array-valued probabilities are joint samples and propagate elementwise. Unequal lengths are rejected by default; --resample-independent explicitly bootstraps independent marginals and therefore discards joint alignment. --shuffle uses a shared permutation.
• Symbolic output: algebraic expressions (e.g. (A + B * C)).
• Ref/clones: reuse events within the same tree using {"ref": "ID"} (cycles are detected and rejected).
• API: FastAPI server (/analyze, /health) for integrating with other tools.
• GUI: faultree gui, a local web interface (standard library only).

Development

pip install -e ".[server,test]"
python -m pytest

tests/test_auto_examples.py cross-checks every example tree against an independent brute-force oracle; tests/test_examples.py pins hand-computed golden values; tests/test_fixes.py covers regression cases (success-mode XOR duality, cycle detection, input validation, server behavior).

Backlog

• Minimal Cut Sets at scale: ZBDD-based extraction beyond the bounded enumeration.
• Variable Ordering: Heuristics and dd sifting for BDD size reduction.
• Time-Dependent Analysis: the GUI computes event probabilities from failure models at one mission time; next: Q(t) curves, repairable components (availability), failure models in the engine and CLI, and uncertainty on model parameters (e.g. on λ).
• Sound Uncertainty Propagation: jointly sampled Monte Carlo / LHS with percentile bounds (replacing per-event resampling).
• Common-Cause Failure: beta-factor / MGL / alpha-factor groups.
• Transfer Symbols: Split trees across multiple files (transfer_in).
• Open-PSA MEF: import/export for ecosystem interoperability.
• Frontend: the local GUI (faultree gui) covers editing, exact results, cut sets, importance, what-if and uncertainty. Next: navigation of large trees (collapse branches, search), state-of-knowledge correlation between identical components in the uncertainty analysis, and a Pyodide build that needs no local server.

Notes

• Assumes independent basic events.
• Variable ordering is based on traversal order unless specified with --ordering (which must cover all basic events).
• The engine (and the underlying dd library) is recursive: extremely deep trees/BDDs (~1000 levels) can hit Python's recursion limit.

Bounded monotone minimal cuts

minimal_cut_sets(tree, max_order=6, max_candidates=10000, max_sets=1000, max_basic_events=32) returns positive minimal cuts for AND/OR/K_OF_N models. Always inspect complete, truncated and reason; an incomplete list is not an exhaustive reliability result. XOR needs signed implicants and is rejected. Limits apply to enumeration, not a hard wall-clock or BDD-memory budget.

Citing

If you use faultree in academic work, please cite it: GitHub's Cite this repository button (from CITATION.cff) gives APA and BibTeX. Releases are archived on Zenodo: doi:10.5281/zenodo.23244049 cites the software across versions, and each release has its own DOI on that page.

License

BSD 3-Clause — see LICENSE.
